| 最小注文数量 : | 1km | パッケージの詳細 : | アニメのボックスを輸出する |
|---|---|---|---|
| 受渡し時間 : | 5～8営業日 | 支払条件 : | ウェスタン・ユニオン,T/T,L/C,Alipay |
| 供給の能力 : | 1日あたりの1000pcs |
| 起源の場所: | 広州、中国 | ブランド名: | Jiqian/Customize/ OEM |
|---|---|---|---|
| 証明: | ISO 9001/CE/FCC/ROHS | モデル番号: | SC-LC パッチコード |
|
詳細情報 |
|||
| コネクタの種類: | SC-LC またはハイブリッド | 長さ: | 1m 2m 3mまたはカスタマイズ |
|---|---|---|---|
| 材料: | PVC/LSZH | 色: | 黄色 |
| アイテム: | 光ファイバーパッチコード | 再現性: | ≤ 0.2 dB |
| 繊維数: | シンプルまたはデュプレックス | 品質管理: | 出荷前に100％テストします |
| ハイライト: | OS2 SC LC duplex fiber patch cord,single mode 9/125 fiber optic cable,SC to LC optical patch cord |
||
製品の説明
This SC-LC OS2 9/125µm single-mode patch cord provides stable, low-loss fiber connections for CATV systems, optical switches, terminal boxes and FTTH networks. Designed with durable PVC or LSZH jackets, the cable ensures reliable transmission, low insertion loss and high return loss. Available in simplex or duplex versions with SC, LC, ST or MTRJ connectors in PC/UPC/APC polishing.
Low insertion loss
High return loss
Excellent repeatability & interchangeability
Strong environmental stability
PVC or LSZH jacket options
Communication rooms & data centers
FTTH / FTTX networks
LAN & high-speed transmission systems
Fiber optic sensors (FOS)
Optical communication equipment connections
Optical Characteristics
| Mode | SM | MM | |
| Polish | UPC | APC | APC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB(1000 times mating) | ||
| Tensile Strengh | >10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB(+25+65 93 R.H.100 hours) | ||
Technical Data
|
Type |
Standard,Master |
|
Style |

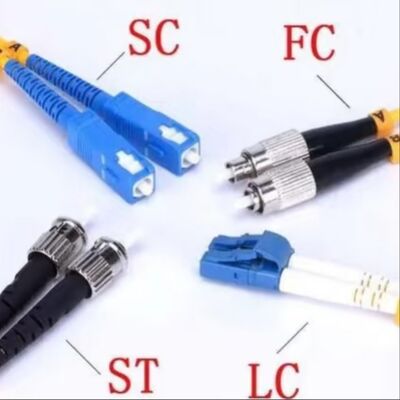

LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125 (Multimode) OM2&OM1 50/125,10G(Multimode)OM3 |
|
Cable |
Simplex,Duplex Φ3.0mm,Φ20mm,Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°&6°) |
|
Insertion Loss |
≤0.1dB(For Singlemode Master) ≤0.25dB(ForSinglemodeStandard) ≤0.25dB(ForMultimode) Tested by JDSRM3750 |
|
ReturnLose (Singlemode) |
UPC≥50dB SPC≥55dB APC≥60dB(typ.65dB) Tested by JDSRM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C° to 850 C° |
|
GeometryRequirement (Singlemode) |
Ferrule Endface Radius 7mm≤R≤12mm(For APC) 10mm≤R≤25mm(For Standard) Apex Offset≤30μm(For Master) Apex Offset≤50μm(For Standard) Under cut-50nmSU≤50nm Tested by DORCZX-1 |
Recommed Products
FAQ
1. Are you a trading company or manufacturer?
We are a real manufacturer with 10 years of experience, specializing in the research, development and production of fiber optic cables, FTTH drop cables, and patch cords. Our factory is located in Guangzhou, China. Welcome to visit us!
2. How about your product quality?
All fibers are 100% tested before delivery.
After price confirmation, free samples can be provided—you only need to cover the freight.
3. Do you accept small orders?
Yes, small orders are welcome. We support new customer projects because we know business always starts from small orders.
4. What is the lead time?
Usually 3–7 working days depending on order quantity.
We will arrange production and shipment as soon as payment is received.
