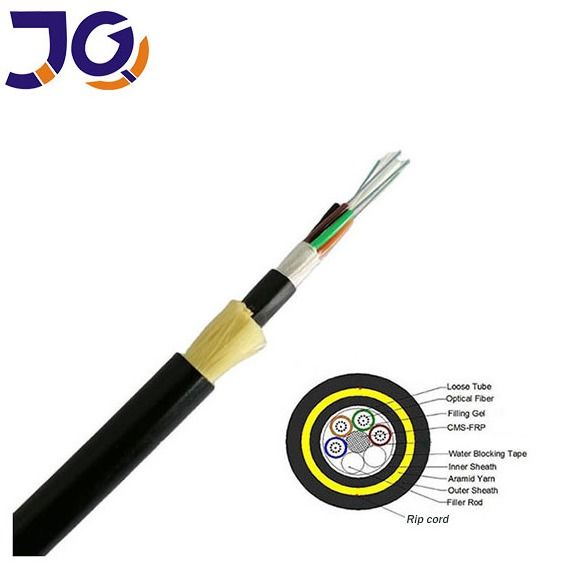

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant
Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant
接触

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant

最小注文数量 : 1km パッケージの詳細 : 木製のドラム
受渡し時間 : 5～8営業日 支払条件 : L/C、T/T、ウェスタンユニオン
起源の場所: 広州、中国 ブランド名: JQ/OEM/Customize
証明: ISO9001 ROHS CE FCC SDOC モデル番号: ADSS-60B1

詳細情報
ファイバーの種類: シングルモードまたはマルチモード 繊維数: 60 48 96 コア
色: 黒、カスタマイズ 長さ: 2kmまたはカスタマイズされた長さ
ジャケット素材: PE,MDPE,LSZH,HDPE 名前: ADSS 光ファイバーケーブル
強度メンバー: FRP アプリケーション: 空中
ハイライト:

Single Mode ADSS fiber optic cable

,

G652D double jacket ADSS cable

,

Outdoor aerial water resistant fiber cable

製品の説明

60 Core Single Mode G652D Double Jacket Outdoor ADSS Fiber Optic Cable



Description:

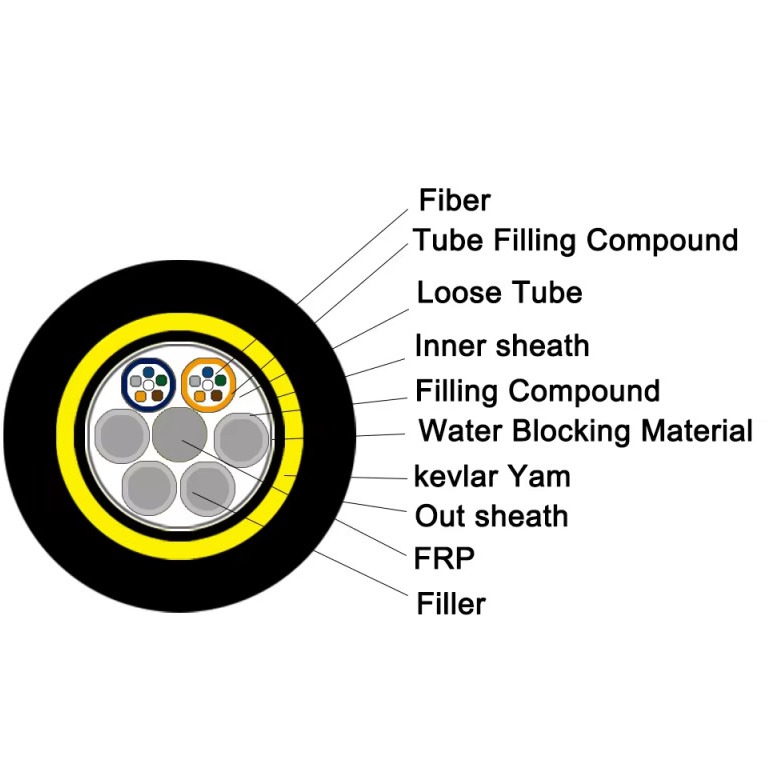

Loose-tube stranded ADSS cable with 250μm fibers in high-modulus plastic tubes filled with water-resistant compound. Tubes are stranded around a FRP central strength member, covered with PE inner sheath and aramid yarns, finished with PE or AT outer sheath.



Features:

  • FRP central strength member with water-resistant filling

  • Can be installed without power shutdown

  • Lightweight, small diameter, reduces ice/wind load on towers

  • Large span lengths: 100m/200m/300m/400m

  • High tensile strength and temperature resistance

  • Designed lifespan: 30 years

  • Package: 2–4 km export wooden drum





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant 0

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant 1





Technical Data



Span : 100m



Cable type



60core Double Jacket ADSS



structural

parameter



Central strength components : FRP



Diameter : 2.1mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable



12.3mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



150kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



E-modulus



12.1 kn/mm2



Coefficient of thermal expansion



1.9  10-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm





Structure and Technical Specifications ADSS-DJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510



Product Show

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant 2

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃



Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Single Mode G652D Double Jacket ADSS Fiber Optic Cable Outdoor Aerial High Strength Water Resistant 3



FAQ

  1. Manufacturer or trader? – We are a manufacturer with 10 years of experience in research, development, and production of fiber optic cables, drop cables, and patch cords. Factory located in Guangzhou.

  2. Quality? – All fibers are tested before delivery. Free samples available after price confirmation.

  3. Small orders? – Accepted; we support new projects.

  4. Delivery time? – Usually 3–7 working days depending on quantity. Goods shipped ASAP after payment.

  5. OEM service? – Available; we can print your logo or customize per your ideas.
