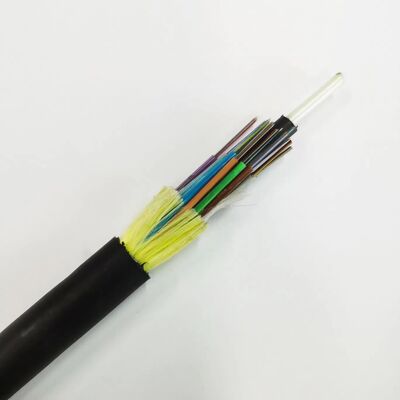

Single Jacket ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable
Product Features
All dielectric non metallic structure for safe use near power lines
Self supporting design for easy aerial installation
Single jacket structure with lightweight and durable performance
High tensile strength for stable overhead deployment
Resistant to electrical interference and harsh environments
Application Scenarios
Overhead installation on power transmission lines
Outdoor aerial telecom networks
FTTH and FTTX access networks
Urban and rural broadband infrastructure
| Item | Specification |
|---|---|
| Product Name | Single Jacket ADSS Fiber Optic Cable |
| Fiber Type | Single Mode G652D / G657A |
| Fiber Count | 2 – 144 Cores |
| Cable Structure | Stranded Loose Tube |
| Central Strength Member | FRP (Non-metallic) |
| Reinforcement | Aramid Yarn |
| Outer Sheath | PE or AT (Anti-tracking) |
| Installation Type | Aerial Self Supporting |
| Span Length | 80 – 200 m (customizable) |
| Operating Temperature | -40°C to +70°C |
| Application | Overhead power lines / Telecom networks |
| Standard | IEC, ITU-T compliant |
FAQ – Single Jacket ADSS Fiber Optic Cable
Q1: What is ADSS fiber optic cable used for?
A: It is mainly used for aerial installation on power poles and telecom overhead networks.
Q2: What fiber types are available?
A: G652D and G657A single-mode fibers are available.
Q3: What is the typical span length?
A: The common span is 80–200 meters, and it can be customized for longer spans.
Q4: Is the cable resistant to electrical interference?
A: Yes, the all-dielectric design makes it safe for installation near power lines.
Q5: Do you support OEM customization?
A: Yes, we support OEM services including cable structure, length, and logo printing.
