ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable
Product Introduction:

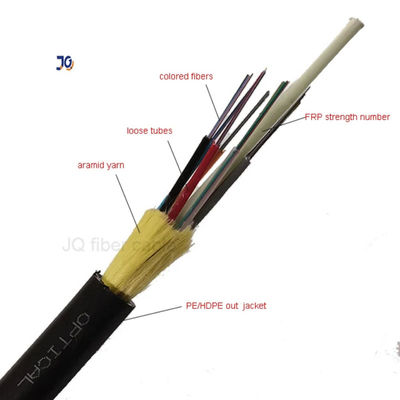

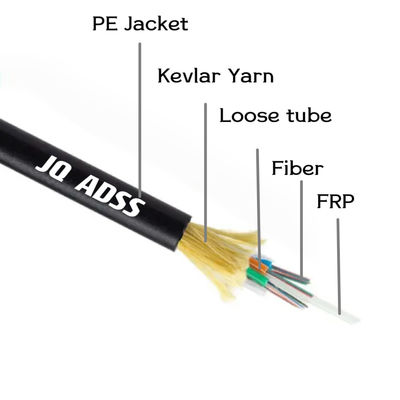

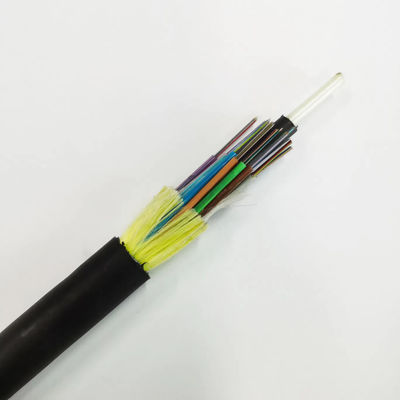

ADSS fiber optic cable features a loose tube stranded structure with FRP strength member, designed for reliable aerial installation without metallic components.
Key Features:
Applications:
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 13 10nm | μm | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | um | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | μm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1550nm | dB/km | ≤0.36 |
| 1310nm | dB/km | <0.22 | ||
