GYTA Armored Fiber Optic Cable Aluminum Tape Outdoor Aerial and Duct Communication Cable
Product Introduction

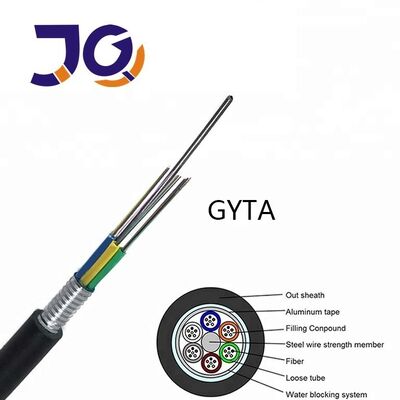

GYTA armored fiber optic cable features a stranded loose tube structure with an aluminum tape moisture barrier and durable PE sheath. It provides strong mechanical protection and stable optical transmission, making it suitable for outdoor aerial and duct installations in telecom networks.
Product Features
Aluminum tape armor for moisture and corrosion resistance
Central strength member for high tensile performance
Loose tube filled with water-blocking gel for fiber protection
Durable PE outer jacket for long-term outdoor use
Stable transmission for high-capacity communication networks
Application Scenarios
Telecom backbone and metropolitan area networks
CATV and broadband communication systems
Outdoor aerial and duct installations
Long-distance data transmission networks
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ – GYTA Armored Fiber Optic Cable
Q1: What is GYTA fiber optic cable used for?
A: It is mainly used for outdoor aerial and duct telecom networks.
Q2: What protection does the cable have?
A: It uses aluminum tape armor and a PE sheath for moisture and corrosion protection.
Q3: Is the cable waterproof?
A: Yes, the loose tubes are filled with water-blocking gel to prevent moisture penetration.
Q4: What fiber counts are available?
A: The cable supports multiple core options, commonly from 2 to 288 cores.
Q5: Do you support OEM customization?
A: Yes, OEM services are available, including custom structure, length, and labeling.
