24 48 96 Core GCYFY Air Blown Fiber Micro Cable

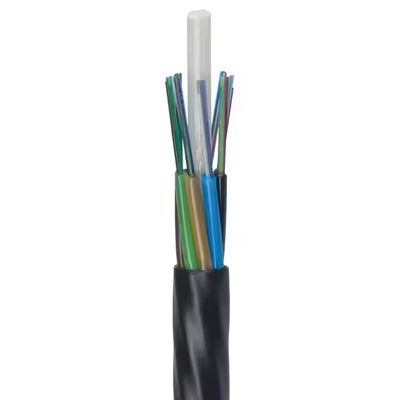

GCYFY air blown micro cable adopts loose tube stranded structure with non metallic strength member and no armor design

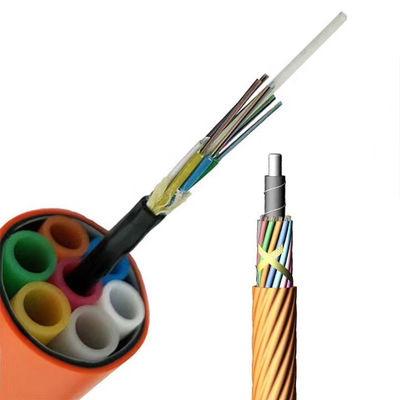

Designed for hauling or air blowing installation into pre installed micro ducts
Air blowing installation improves duct utilization and reduces construction cost
Easy network expansion without replacing existing pipelines
Lightweight and compact structure for flexible deployment
FTTH feeder and drop segments using air blown installation
Connection between branch points and subscriber access points
Backbone network deployment
Metropolitan area network applications
Access network construction
Product Description
1. Model: GCYFY

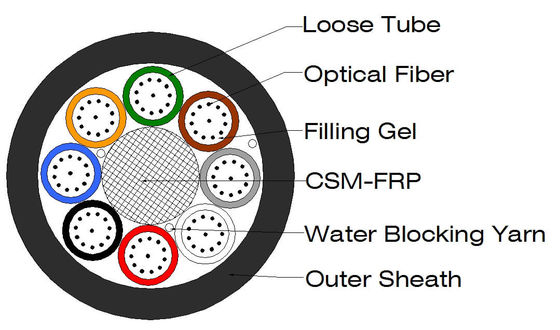

2. Cable Cross-section
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
• Transport/storage temperature: -40℃ to +70℃
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Delivery Length
• Standard length: 4,000m; other lengths are also available.
