担当者 : JQ CABLE
電話番号 : +8618122383351
Whatsapp : +8618122383351
| 最小注文数量 : | 1km | パッケージの詳細 : | 木製のドラム |
|---|---|---|---|
| 受渡し時間 : | 5-8勤務日 | 支払条件 : | L/C、T/T、Western Union |
| 供給の能力 : | 1日あたりの30km |
| 起源の場所: | 広州、中国 | ブランド名: | JQ/OEM/Customize |
|---|---|---|---|
| 証明: | ISO9001 ROHS CE-EMC FCC SDOC | モデル番号: | GCYFY/GCYFTY |
|
詳細情報 |
|||
| 繊維数: | 4-144コア | ファイバータイプ: | シングルモード/マルチモード |
|---|---|---|---|
| ジャケット: | PE/PVC/LSZH/HDPE/MDPE | 色: | 黒くかオレンジまたはカスタマイズされる |
| 製品名: | エア吹かれたマイクロ ケーブル | モデル番号: | GCYFY/GCYFTY |
| 長さ: | 2kmまたはカスタマイズされた長さ | インストール: | 航空またはダクト |
| 導体の数: | ≥10 | 屋外: | 屋外ファイバーオプティックケーブル |
| 中央強度メンバー: | FRPまたは鋼鉄のワイヤー | ウォーターブロッキング材料: | 水ブロックテープまたは充填化合物 |
| 鎧: | 波紋鋼テープ装甲 | ケーブルサイズ: | 8mm〜16mm |
| コア: | バイヤーの要求によって | ケーブル構造: | 複数の松散管鋼テープ装甲 |
| RTS: | 45-80 kN | 動作温度: | -40°C〜 +70°C |
| OEM: | 許容できる | 保証: | 25年 |
| ゆるいチューブ: | PBT | モデル: | 装甲された光ファイバーケーブル |
| ジャケット素材: | PE | ファイバーモデル: | Singlemode/Multimode |
| コア: | 12-144コア | メッセンジャーの直径: | 5.0mm |
| 外着の色: | 黒 | 鞘: | HDPE |
| 上昇の時間: | 20年以上 | ゆるいチューブ材料: | PBT |
| 構造: | 中央の松散管 | 内蓋の材料: | PE/HDPE |
| サンプル: | 無料 | コア番号: | 6コア/8コア/12コア |
| 強度メンバー: | 鋼線 | ケーブルタイプ: | ゆるいチューブ |
| ハイライト: | 96 core microduct fiber cable,air blown outdoor fiber optic,loose tube high speed cable |
||
製品の説明

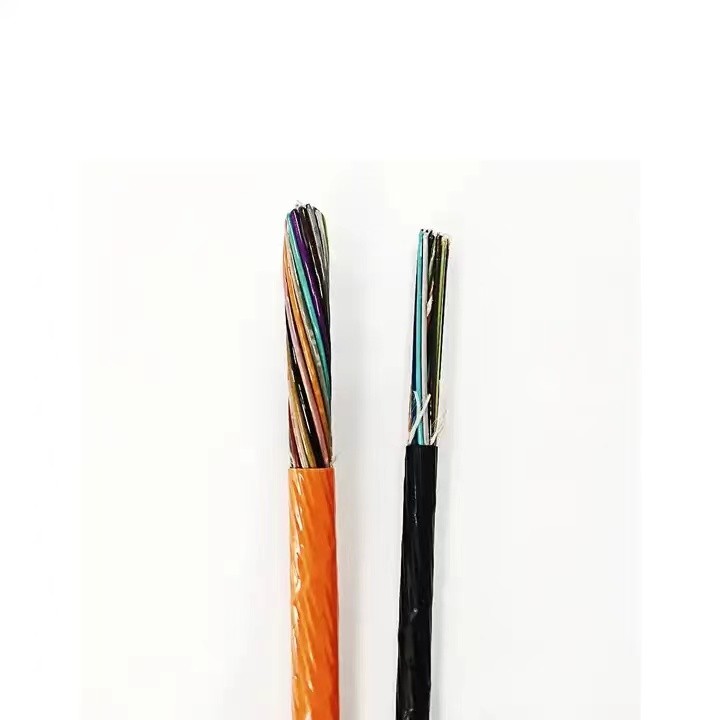

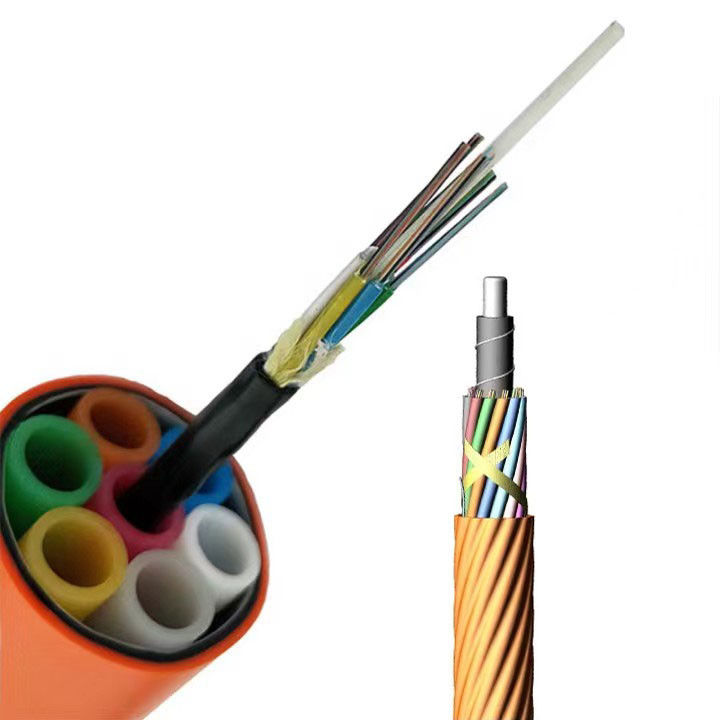

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable
Product Description
The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.
Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.
Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.
1. Model: GCYFY-96B1.3
2. Cable Cross-section
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Environmental Characteristics
| Working temperature | -35oC ~ +70oC |
| Storage and transportation temperature | -35oC~ +70oC |
| Installation temperature | -15oC~ +60oC |
Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.
Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.
FAQ
Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.
Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.
Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.
Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.
Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.
Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.
Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
