担当者 : JQ CABLE
電話番号 : +8618122383351
Whatsapp : +8618122383351
| 最小注文数量 : | 1キロメートル | パッケージの詳細 : | 木製のドラム |
|---|---|---|---|
| 受渡し時間 : | 2-5日 | 支払条件 : | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力 : | 月額8000キロメートル |
| 起源の場所: | 中国広東ンジ | ブランド名: | JQ/OEM/Customize |
|---|---|---|---|
| 証明: | CE/ISO9001/RoHS/FCC | モデル番号: | Gyta 12core/24core/48core |
|
詳細情報 |
|||
| タイプ: | 屋外ファイバーオプティックケーブル | 起源の場所: | 中国広州 |
|---|---|---|---|
| ファイバータイプ: | G652Dシングルモードまたはリクエストとして | 繊維数: | 2-144コア |
| 長さ: | カスタマイズ | 色: | カスタマイズ |
| チューブ: | 複数の松散管 | 中央強度メンバー: | 鋼線 |
| 装甲: | 装甲鋼鉄テープ | 外側の鞘: | PE/ HDPE/ MDPEまたはリクエストとして |
| パッケージ: | 木製のドラム | 応用: | 空中、オーバーヘッド/直接埋葬 |
| OEM: | 利用可能 | 動作温度: | -40°C~+70°C |
| ジャケットの色: | 黒 | 材料: | PE/HDPE/MDPE |
| 標準長: | 2,000m/4,000m | 鎧: | 鋼テープ+アルテープ |
| 繊維材料: | YOFC/ CORNING/ FIBERHOME | 繊維の数: | 24F |
| フィラー: | 満ちる混合物 | アウターシース材料: | MDPE / HDPE / PE |
| 強度メンバー: | 鋼線 | 証明書: | CCC ISO9001、CE、TLC |
| ジャケット: | PE、MDPE、LSZH、PVC | UV抵抗: | はい |
| 抗張力: | 1000N/1500N/2000N/2500N/3000N | ||
| ハイライト: | GYTA armored fiber optic cable,outdoor loose tube fiber cable,144 core aerial duct cable |
||
製品の説明
GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Protection

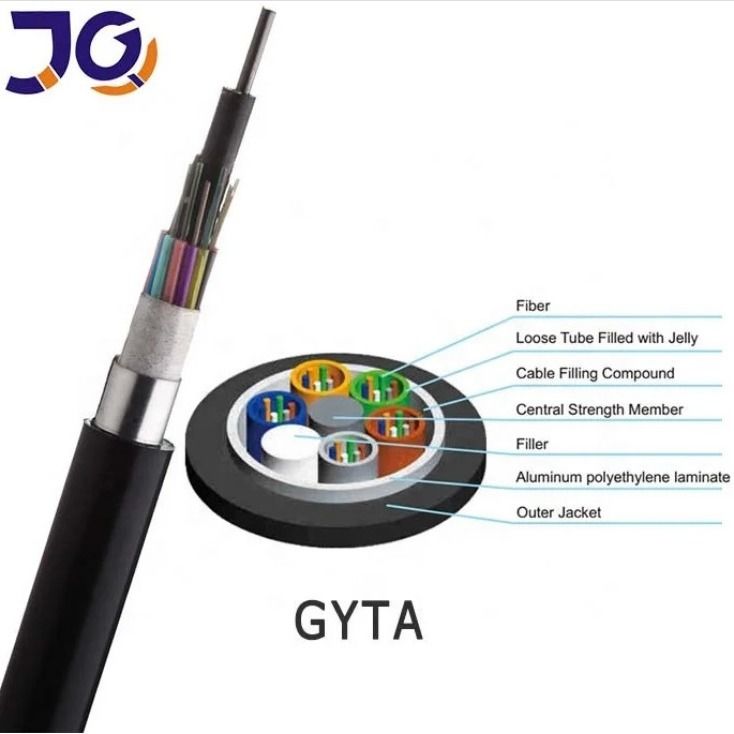

The GYTA cable is built with stranded loose tubes around a central strength member, creating a stable and compact core. The core is wrapped with aluminum-polyethylene laminate, tightly bonded to a PE inner sheath to block both longitudinal and radial moisture. For extra protection, corrugated steel tape laminated with polyethylene is applied, and a durable MDPE outer jacket is extruded under strict conditions.
GYTA is ideal for aerial and duct installations in long-distance telecom networks. The “A” represents the aluminum tape layer, which delivers excellent corrosion and moisture resistance, making it a better choice than steel-tape designs for duct environments.
Key Features & Benefits
High Strength & Durability – Excellent tensile and crush resistance for demanding environments.
Reinforced Central Member – Phosphatized steel wire core, optionally PE-coated for extra flexibility and corrosion protection.
Superior Water Blocking – Loose tubes and cable core are fully filled with water-blocking gel to prevent longitudinal water ingress.
Effective Moisture Barrier – Aluminum tape laminated with PE ensures strong radial moisture protection and rust prevention.
Long Service Life – Reliable optical performance for backbone and metro networks.
Wide Applications – Perfect for telecom backbone, CATV, and high-speed data transmission systems.
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We?
We are a professional fiber optic cable manufacturer in Guangdong, China, established in 2017. Our products are exported worldwide, with major markets in Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia. We have a team of 11–50 skilled employees.
2. How Do We Guarantee Quality?
Pre-production samples are offered before mass production.
100% final inspection is carried out before shipment.
3. What Products Do We Offer?
Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Indoor/Outdoor Fiber Cables.
4. What Services Are Available?
Delivery Terms: FOB, EXW
Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
Currencies Accepted: USD, CNY
Languages: English, Chinese
5. What Is the Minimum Order Quantity (MOQ)?
The MOQ is 1 km.
6. Can I Get a Sample?
Yes, we offer free samples; you only need to pay the shipping fee.
7. Do You Support OEM/ODM?
Yes, we provide customized solutions with full OEM and ODM support.
8. What Is the Lead Time?
Usually 3–7 days after order confirmation, depending on quantity and specifications.
