GYTA33 Submarine Fiber Optic Cable 48 96 144 Core Underwater Optical Cable for Long Distance Communication

製品の説明

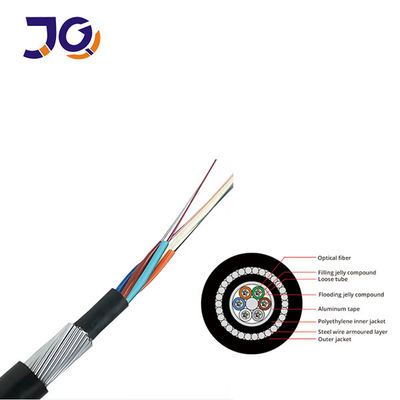

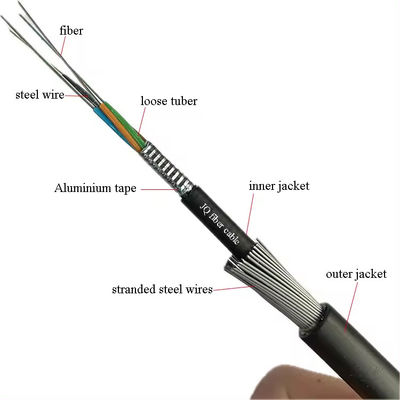

Product Description – GYTA33 Underwater Fiber Optic Cable

The GYTA33 fiber optic cable is specially designed for underwater and direct-buried installations in harsh environments. With steel wire armoring and a double jacket structure, this cable delivers excellent durability and reliability even under extreme conditions.

• Fiber Type: G652D Single-Mode (SM)

• Core Count: 12 Cores (customizable up to 144 cores)

• Structure: Stranded loose tube with secondary excess length design

• Armoring: Heavy-duty steel wire armor for superior mechanical protection

Key Features

• Underwater & Underground Use – Ideal for submarine shallow water, river crossing, and direct burial in demanding terrains.

• High Mechanical Strength – Steel wire armor ensures resistance to tensile force, crush, and impact.

• Loose Tube Design – Allows fibers to move freely inside the tube, reducing stress during cable stretching and ensuring long-term stability.

• Double Jacket Protection – Provides enhanced environmental resistance against moisture, corrosion, and soil pressure.

• Long Service Life – Built to perform reliably in telecom networks, power grid communication, and oil & gas projects.

Applications

• Submarine and river-crossing communication lines

• Direct buried underground fiber optic networks

• Backbone transmission for telecom operators

• Oil, gas, and power industries requiring secure communication links



Fiber Parameters:



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100



Lead time:Usually 7days,it depends on order quantity

Shipping methods:by sea LCL/FCL,It depends on order quantity

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech enterprise specializing in the research, manufacturing, and sales of communication products, with independent import and export rights.

With over 13 years of experience in fiber optic cable production, our company has obtained ISO9001, FCC, RoHS, and CE certifications. We provide OEM services and can design customized cable structures to meet diverse customer needs.

Our main products include fiber optic cables, FTTH drop cables, and related communication accessories, which are widely applied in telecommunications, railways, and various communication networks. At present, our products are exported to North & South America, the Middle East, Southeast Asia, Africa, and many other regions.

Cable Printing:



Exhibition



Certification:





FAQ

1. Are you a manufacturer?
Yes, we are a professional manufacturer with over 13 years of experience in fiber optic cable production.



2. What fiber brands do you use?
We mainly use YOFC and FiberHome fibers.



3. Do you provide samples?
Yes, we offer free samples. Customers only need to cover the freight cost.



4. Can you accept small orders?
Of course. We support small orders and new projects, as we believe business often starts from small quantities.



5. What is the warranty period?
Our outdoor fiber optic cables come with a 25–30 year warranty.



6. What certifications do you have?
We are certified with ISO9001, FCC, RoHS, and CE.



7. How long is your delivery time?
Typically 5–7 working days, depending on the order quantity.



8. What payment methods do you accept?
We accept T/T, L/C, and Western Union.



9. Do you offer customization and OEM service?
Yes, OEM & ODM services are available. You can send us your design or requirements.
