GYFTY33 Anti Rodent Optical Cable

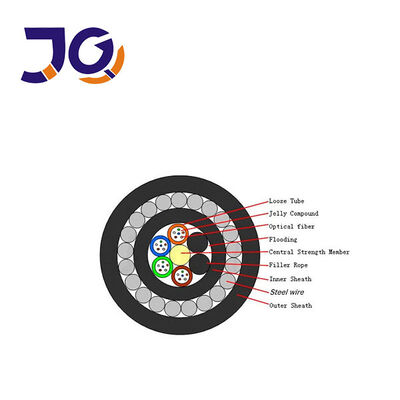

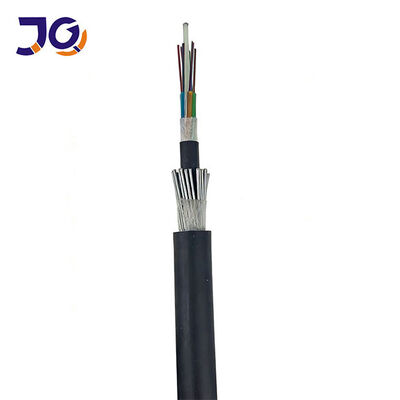

The GYFTY33 fiber optic cable is constructed with armored steel wire, providing superior mechanical performance in both tensile strength and crush resistance. Its steel wire armor and double-jacket design offer excellent protection against rodents and harsh environments. Double water-blocking yarns and tapes are applied around the fiber cores to ensure outstanding waterproof performance. This stranded loose-tube cable is available in both single-mode and multi-mode types, with fiber counts ranging from 4 to 288cores.
Application Scenarios
• Direct burial, underground pipelines, areas with high rodent infestation (farmland/mountainous/suburban areas);
• Outdoor communication backbones and access networks; suitable for humid/waterlogged environments;
• Not suitable for scenarios where high-voltage power lines are in the same trench without isolation (non-metallic reinforcement components lack electromagnetic shielding)
Fiber Optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
| Proof stress level | kpsi | ≥100 | |
Fiber Testing
Cable testing
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
For more information please contact me
