| 最小注文数量 : | 1000m | パッケージの詳細 : | 木製のドラム |
|---|---|---|---|
| 受渡し時間 : | 2-4日 | 支払条件 : | Western Union、MoneyGram、T/T、L/C |
| 供給の能力 : | 2日あたり100km |
| 起源の場所: | 中国 | ブランド名: | Jiqian/Customize/ OEM |
|---|---|---|---|
| 証明: | ISO9001 ROHS CE-EMC FCC SDOC | モデル番号: | GJFJV |
|
詳細情報 |
|||
| ファイバーの種類: | OM3/G652D/G657A1/G655 | OEM: | 利用可能 |
|---|---|---|---|
| 動作温度: | -20~70°C | 中央強度メンバー: | アラミド繊維/ケブラー繊維 |
| 材料：: | PVC/LSZH | 繊維数: | 12 24の48 96中心 |
| ファイバーブランド: | YOFC/FiberHome/Fujikura/Corning | 応用: | 通信/データセンター/FTTH |
| ハイライト: | 12 core indoor fiber optic cable,LSZH singlemode fiber cable,indoor distribution fiber optic cable |
||
製品の説明

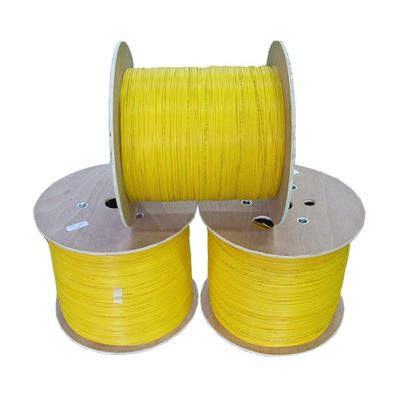

Indoor 12 Core Multimode Distribution Tight-Buffered Fiber Optic Cable (GJFJH / GJFJV)
GJFJV indoor distribution cable uses 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with a layer of aramid yarn for added tensile strength and then jacketed with either PVC or LSZH, depending on installation requirements.
The tight-buffer fibers are produced using high-precision buffering technology, available in 600μm or 900μm diameters. High-quality optical fibers, specialized production equipment, and strict process control ensure excellent mechanical stability and reliable transmission performance.
Excellent mechanical and environmental performance
Flame-retardant design meets industry standards
Reliable mechanical strength for indoor/outdoor use
Soft, flexible, and easy to splice
High-capacity data transmission
|
No. of cable
|
8
|
12
|
24
|
36
|
48
|
|
|
Fiber Model
|
OM3
|
|||||
|
Tight lines
|
Material
|
PVC/LSZH
|
||||
|
Thickness(±0.03)mm
|
0.32
|
|||||
|
Diameter(±0.06)mm
|
0.9
|
|||||
|
Center Strength Member
|
Material
|
FRP
|
||||
|
Diameter(±0.1)mm
|
—
|
—
|
—
|
0.5
|
0.5
|
|
|
Strength Member
|
Material
|
Aramid Yarn
|
||||
|
Inner Sheath
|
Material
|
PVC/LSZH
|
||||
|
Diameter(±0.1)mm
|
—
|
—
|
—
|
0.8
|
0.8
|
|
|
Colour
|
Aqua
|
|||||
|
Outer Sheath
|
Material
|
PVC
|
||||
|
Thickness(±0.1)mm
|
0.9
|
1.0
|
1.0
|
1.5
|
1.5
|
|
|
Colour
|
Aqua
|
|||||
|
Cable Diameter(±0.2)mm
|
5.8
|
6.2
|
8.5
|
15.1
|
15.1
|
|
|
Cable Wetght(±5)kg/km
|
31
|
41
|
60
|
238
|
235
|
|
|
Attenuation
|
850nm
|
dB/km
|
≤2.5
|
||||
|
1300nm
|
≤0.7
|
||||||
|
Bandwidth
|
850nm
|
MHz.km
|
≥3500
|
||||
|
1300nm
|
≥500
|
||||||
|
Allowable Tensile Strength
|
Short Term
|
N
|
660
|
660
|
660
|
1320
|
1320
|
|
Long Term
|
200
|
200
|
200
|
660
|
660
|
||
|
Allowable Crush Resistance
|
Short Term
|
N/100mm
|
1000
|
1000
|
1000
|
1500
|
1500
|
|
Long Term
|
200
|
200
|
200
|
300
|
300
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable-φ
|
||||||
|
Temperature range
(℃)
|
Installation
|
-20~+60
|
|||||
|
Transport&Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
Are you a real manufacturer?
Yes, we are a professional factory in Guangzhou, China. Welcome to visit us!
What is your minimum order quantity?
1 KM. Trial orders and new projects are supported.
Can I get a sample?
Yes, free samples are available. You only need to cover express shipping.
What payment methods do you accept?
L/C, T/T, Western Union, and PayPal are all accepted.
What is the delivery time?
Usually 3–7 working days, depending on order quantity.
Can you supply customized products and logo?
Yes, we provide OEM & ODM services. Please contact us with your requirements.
