FTTH Outdoor Drop Cable 1 4 Core with Steel Messenger LSZH Sheath

最小注文数量 : 1キロ パッケージの詳細 : カートン
受渡し時間 : 2-5日 支払条件 : L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力 : 月に8万キロ
起源の場所: 広東省、中国 ブランド名: JQ/OEM/Customize
証明: CE/ISO9001/RoHS/FCC モデル番号: 外部 FTTH Messenger ドロップケーブル

詳細情報

ブランド名: JQ/OEM 蓋の材料: LSZH/PVC
ジャケット色: ブラック,ホワイトなど 強度メンバー: 鉄鋼線/FRP ガラス糸
ファイバ: シングルモード,マルチモード メーカー: はい
証明書: CE、FCC、RoHS
ハイライト:

FTTH outdoor drop cable steel messenger

,

4 core fiber optic drop cable

,

LSZH sheath FTTH drop cable

製品の説明



GJYXCH FTTH Drop Cable 1/2/4 Core, Single Mode G.652D/G.657A2, Outdoor



Features

  • Compact Design: Small diameter (3–6 mm) for quick and flexible installation.

  • High Strength: Aramid yarn or FRP reinforcement provides >100 N tensile strength and excellent bend resistance.

  • Durable Construction: UV-resistant LSZH or PE jacket, working temperature -40°C to +70°C, optional water-blocking.

  • Easy Installation: Lightweight (<10 kg/km), supports aerial, duct, and direct-buried applications.

  • Superior Optical Performance: Low attenuation (<0.4 dB/km @1310 nm) and minimal bending loss.


Applications

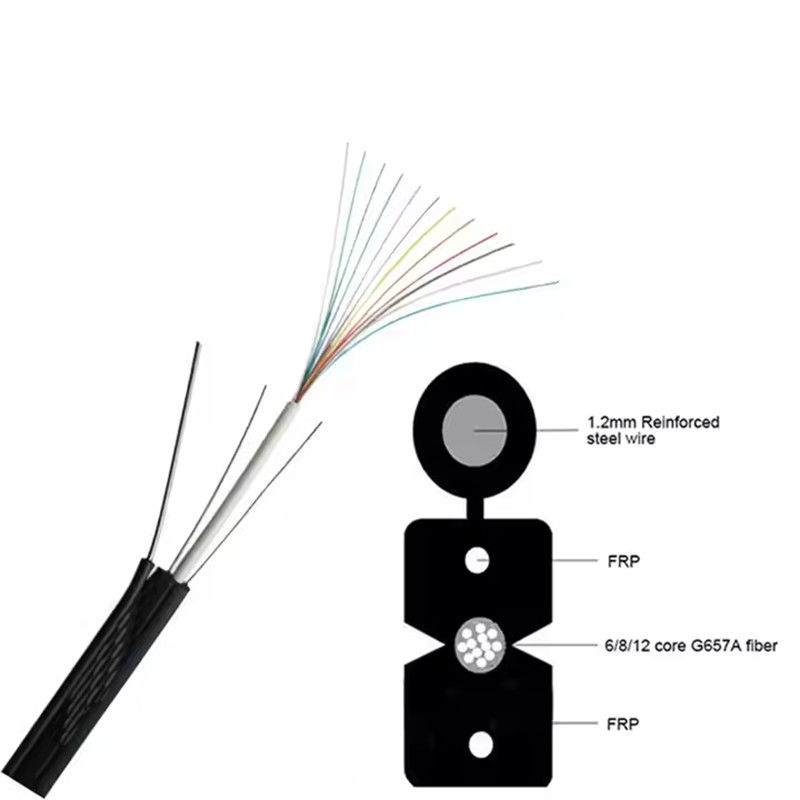

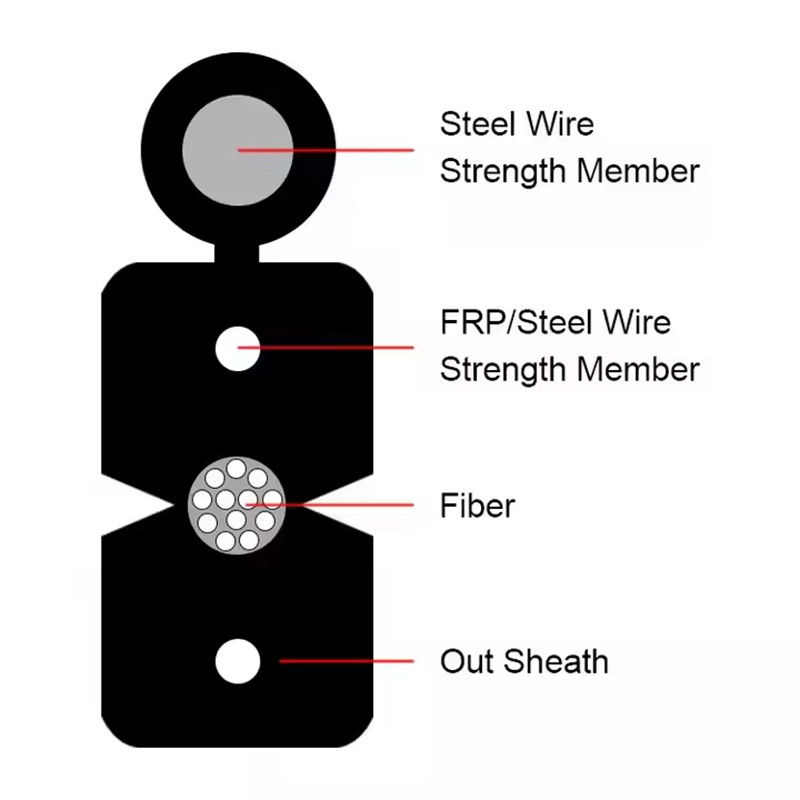

This FTTH drop cable features a central fiber with two steel strength members and an additional steel wire for extra durability.
It uses a low-smoke, zero-halogen (LSZH) jacket available in black or custom colors, making it ideal for safe indoor installations.

  • FTTH aerial or duct installation

  • Indoor vertical cabling

  • Backbone and access network connections





Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require

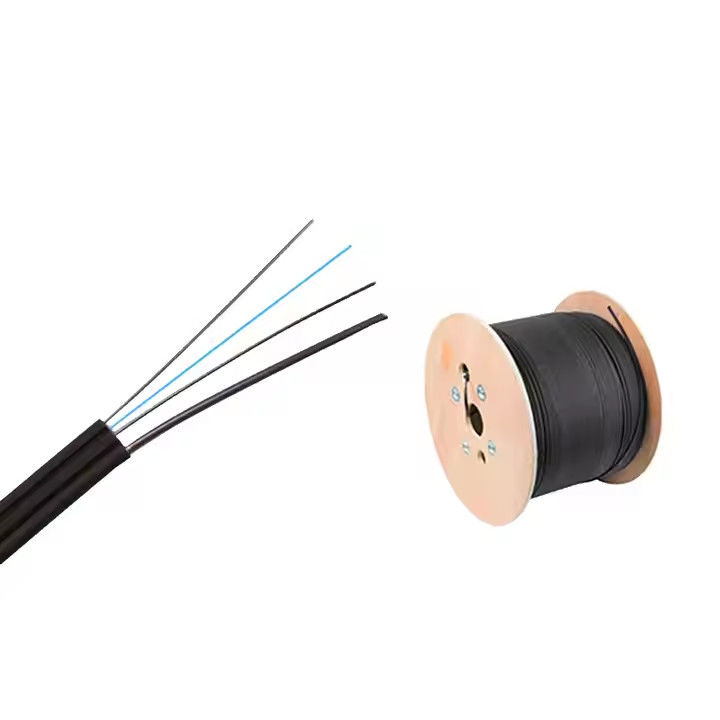

FTTH Outdoor Drop Cable 1 4 Core with Steel Messenger LSZH Sheath 0



Packing





FTTH Outdoor Drop Cable 1 4 Core with Steel Messenger LSZH Sheath 1

The packaging is up to you, we can provide a variety of packaging.

Certificate:

FTTH Outdoor Drop Cable 1 4 Core with Steel Messenger LSZH Sheath 2



FAQ – Frequently Asked Questions

1. Are you a manufacturer or trading company?
We are a professional fiber optic cable manufacturer with over 10 years of experience, located in Guangzhou, China.



2. How do you ensure product quality?
Each fiber is 100% tested before shipment. Free samples are available for quality verification.



3. Do you accept small or trial orders?
Yes, we welcome small and trial orders to support new customer projects.



4. What is your typical lead time?
Usually 3–7 working days, depending on the order quantity.



5. Do you provide OEM or customization services?
Yes, we offer OEM and ODM services including logo printing and custom packaging.
