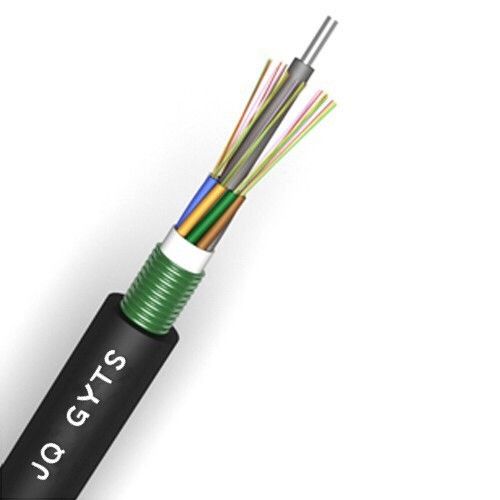

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable

最小注文数量 :	1km	パッケージの詳細 :	木製のドラム
受渡し時間 :	3〜5日、それはあなたの量に依存します	支払条件 :	L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力 :	60000km/月

起源の場所:	広東中国	ブランド名:	Jiqian/Customize/ OEM
証明:	CE/ISO9001/RoHS/FCC	モデル番号:	GYTS-48B1

詳細情報
ファイバータイプ:	G652D/G657A1/G657A2	繊維数:	2-288コア
ジャケット:	PE、MDPE、LSZH、PVC、HDPE	色:	黒
長さ:	2km,5Km,またはカスタマイズされた長さ	保証:	10年
応用:	ダクト/直接埋設	波長:	1310/1550
チューブタイプ:	ゆるいチューブ	上昇の時間:	20年以上
ファイバーブランド:	YOFC/ CORNING/ FIBERHOME	防水:	はい
ジャケットの直径:	9.8-16.1	横方向の圧力が許可されました:	> 1000（n/100mm）
強度メンバー:	2本の鋼線	ケーブルの長さ:	1000m
導体の数:	2,4,8,24,48	管の直径:	2.2-2.6mm
スパン:	100/200/300/400/500m	装甲タイプ:	鋼テープ/鋼線/アルミテープ
スパム:	100/200/300/400/500m	接続構造:	丸いワイヤー
OEMファクトリー:	はい	ケーブルタイプ:	ゆるいチューブ/装甲
ジャケット素材:	PE/PVC/LSZH/HDPE/MDPE	装甲:	装甲鋼鉄テープ
アラミド繊維:	輸入または国内	標準長:	2,000m/4,000m
鋼鉄:	0.45mm	敷設方法:	直接埋葬/ダクト敷設
ゆるいチューブ:	ゲルに満ちた	ケーブルデザイン:	中央のゆるいチューブ
UV抵抗:	はい	作戦温度:	-20℃〜 +70℃
ハイライト:	armored underground fiber optic cable , direct burial outdoor fiber cable , 288 core outdoor fiber optic

製品の説明

High-Performance GYTS Armored Underground Fiber Optic Cable

The GYTS armored fiber optic cable is designed for reliable underground installations, offering durability and stable performance in harsh environments. Available in 2, 4, 6, 8, 12, 24, 32, and 48 cores, it provides flexible options for various network requirements.

Key Features:

Armored Protection: Steel tape or wire armor ensures resistance to mechanical stress, rodent damage, and crushing.
Durable Outer Sheath: High-density polyethylene (HDPE) jacket protects against moisture, corrosion, and UV exposure.
Stable Data Transmission: Multiple cores support long-distance, high-speed communication with minimal signal loss.
Easy Installation: Designed for direct burial or conduit installation, simplifying deployment in outdoor environments.
Versatile Applications: Ideal for telecom networks, data centers, FTTH projects, and critical communication systems.

Specifications & Advantages:

Core options from 2 to 48 for different network needs
Excellent mechanical strength and environmental resistance
Low maintenance and long service life

This GYTS armored underground fiber cable is perfect for network operators, service providers, and enterprise installations requiring reliable, high-performance underground optical connectivity.

Structural Features

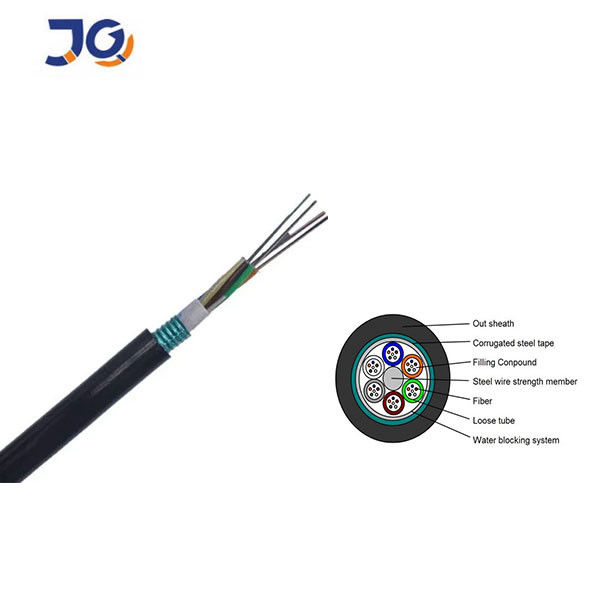

The cable features loose tubes or filler elements stranded around a central metal strength member. The core is protected by corrugated steel tape and an outer PE jacket. The tubes, made from temperature-resistant materials, house single-mode or multi-mode fibers with double coating for enhanced durability.

Product featureThe cable is built with loose tubes or fillers twisted around a central metal strength member. The core is protected with corrugated steel tape and a robust PE outer jacket. The tubes, constructed from heat-resistant materials, contain double-coated single-mode or multi-mode fibers.

Technical Parameters:

			Cable Type (increased by 2fibers)

			Fiber Count

			Tubes+Fillers

			Cable Diameter mm

			Cable Weight kg/km

			Tensile Strength Long/Short Term N

			Crush Resistance Long/Short Term N/100mm

			Bending Radius Static/Dynamic mm

			GYTS 2 ~ 30

			2~30

			5

			9.5

			80

			600/1500

			300/1000

			10D/20D

			GYTS 32 ~36

			32~36

			6

			9.7

			97

			600/1500

			300/1000

			10D/20D

			GYTS 38 ~60

			38~60

			6

			10.5

			109

			600/1500

			300/1000

			10D/20D

			GYTS 62 ~72

			62~72

			6

			11.5

			126

			600/1500

			300/1000

			10D/20D

			GYTS 74 ~96

			74~96

			8

			13.2

			153

			600/1500

			300/1000

			10D/20D

			GYTS98 ~120

			98~120

			10

			14.6

			182

			600/2000

			300/1000

			10D/20D

			GYTS122 ~ 144

			122~144

			12

			16.5

			221

			600/2500

			300/1000

			10D/20D

			GYTS146 ~ 216

			146~216

			18

			16.5

			221

			600/2500

			300/1000

			10D/20D

Fiber Tube Color:

Packaging Details

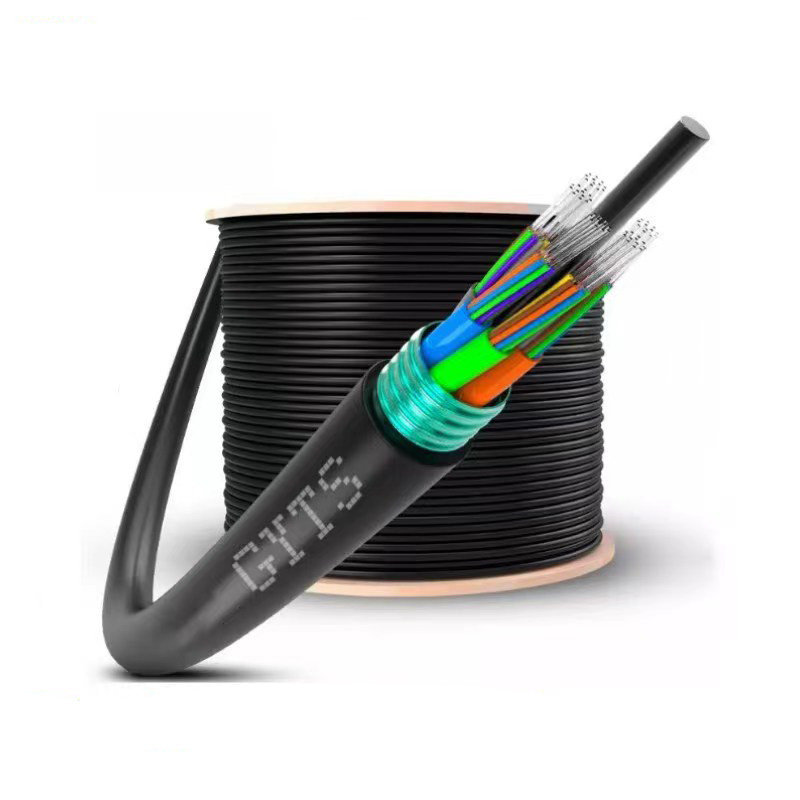

Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.
Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Exhibition Picture
Frequently Asked Questions (FAQ)
What is a fiber optic cable?

	Fiber optic cables transmit data as light signals, offering higher speeds and greater bandwidth compared to traditional copper cables.
What types of fiber optic cables do you offer?

	We provide armored, drop, and loose tube cables, suitable for underground installations, FTTH networks, and other applications.
What core counts are available?

	Cables are available in 2, 4, 6, 8, 12, 24, 32, and 48 cores. Custom core counts can also be arranged.
What is the difference between single-mode and multi-mode fiber?
Single-mode: Best for long-distance, high-speed transmission.
Multi-mode: Suitable for shorter distances with high data rates.
How are the cables packaged?

	Cables are delivered on fumigated wooden drums, wrapped in protective polyethylene, and reinforced with wooden battens.
How do I choose the right fiber optic cable?

	Consider the core count, fiber type (single-mode or multi-mode), and installation environment (indoor, outdoor, or underground). We can assist in selecting the best option.
What is the lead time for orders?

	Standard orders typically ship within 7–10 business days. Custom orders may take longer.
Do you provide installation services?

	We do not provide installation, but can recommend reliable installation partners.
How can I request a quote?

	Email us at [jiqian@gzjqofc.com] with details including core count, cable type, and quantity to receive a quotation.
