G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket

最小注文数量 : 10 KM パッケージの詳細 : 1つの木製ドラムに1/2/3/4/5 km
受渡し時間 : 6ドリュアース 支払条件 : L/C、T/T、Western Union
供給の能力 : 1日あたりの600のKM
起源の場所: 広東中国 ブランド名: JQ/OEM/Customize
証明: ISO9001/CE/ROHS モデル番号: GJXH/GJYXCH

詳細情報

ジャケット素材: LSZH (低煙ゼロハロゲン) 外径: 2.0*3.0mm/2.0*5.0mm
鋼線・FRP: 2*0.5mm/2*0.45mm 色: 白い/Black
ファイバータイプ: G657A1/G657A2/G652D 繊維数: 2/4/6/8/12 コア
インストール: FTTH 室内・室外 ファイバーブランド: コーニング/フジカルー
無料サンプル: Avalible オーム: Avalible
色: 黒か白か 保証: 15年
繊維数: 中心1/2/4の 強度メンバー: FRP/Steelワイヤー
ジャケット色: 黒/ 白/ カスタマイズ 色 保証時間: 30年
中心数: 1-12 曲げ半径: 10mm
コネクターのポーランド語: Uc メッセンジャー: 2つの並列鋼鉄線またはFRP
ジャケット素材: LSZH サイズ: 2.0mm*3.0mm
コネクタタイプ: SC/APC 抗張力: 100N
ハイライト:

FTTH fiber optic drop cable LSZH jacket

,

outdoor indoor FTTX fiber optic cable

,

G657A1 G657A2 messenger drop cable

製品の説明

Title
G657A1/G657A2 FTTH & FTTX Indoor/Outdoor Drop Fiber Optic Cable – GJXH / GJYXCH Types


Product Description
The GJXH and GJYXCH fiber optic drop cables are widely used in FTTH applications for both indoor and outdoor LAN cabling.

  • GJXH: Designed for indoor use, featuring two steel wires or FRP strength members for added durability.

  • GJYXCH: Designed for outdoor use, featuring one messenger steel wire and two steel wire strength members for superior support and stability.

Both types deliver excellent transmission performance and are engineered for reliable, long-term operation.


Features

  • Low loss and high transmission performance

  • Available sizes: 2.0×5.0 mm, 2.0×3.0 mm, 2.5×6.0 mm

  • Strength member options: FRP, QFRP, GFRP, or steel wire

  • Fiber types: G657A1, G657A2, G657B3

  • Complies with IEC standards; ISO9001:2008, RoHS, CE certified

  • 100% quality tested before shipment


Applications

  • FTTH networks for indoor and outdoor LAN and building cabling

  • Connections between instruments, terminal boxes, and communication equipment





Optical Characteristics

Items Unit Specification

G657a2

Mode Field Diameter 1310nm um 8.6±0.4
1550nm um 9.5±0.5
Cladding Diameter um 125±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.35
1550nm dBkm 0.21







Cable Parameters

Items Specifications
Fiber Count 2~12
Colored Coating Fiber Dimension 250μm+15μm
Color blue /orange
Strength Member Diameter 0.45mm/0.5mm
Material Steel/FRP
Outer Jacket Dimension 2.0*3.0mm/2.0*5.0mm/2.7*6.5mm
Material LSZH ( Low smoke zero halogen)
Color Black/white





Technical Parameters

Fiber
Count
Cable
Diameter(mm)
Cable Weight
kg/km)
Tensile Strength
Long/Short
Term (N)
Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)

2~4 2.0*3.0 9.5 300/600 1000/2200 10D/20D
6-12 2.7*6.5  11 300/600 1000/2200 10D/20D







details pictures showes



G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket 0

                                                   indoor drop cable





G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket 1

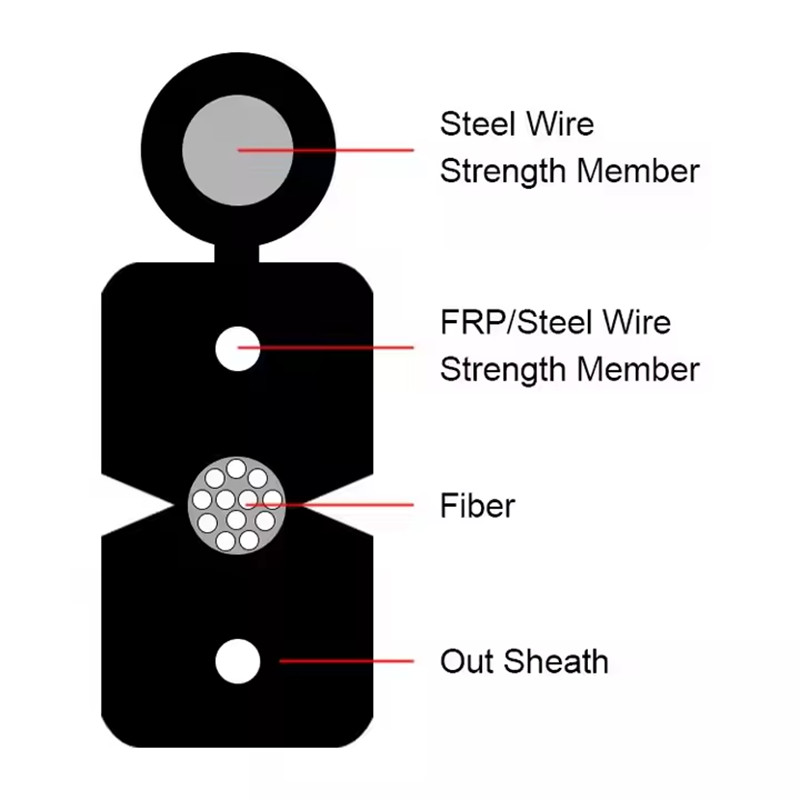

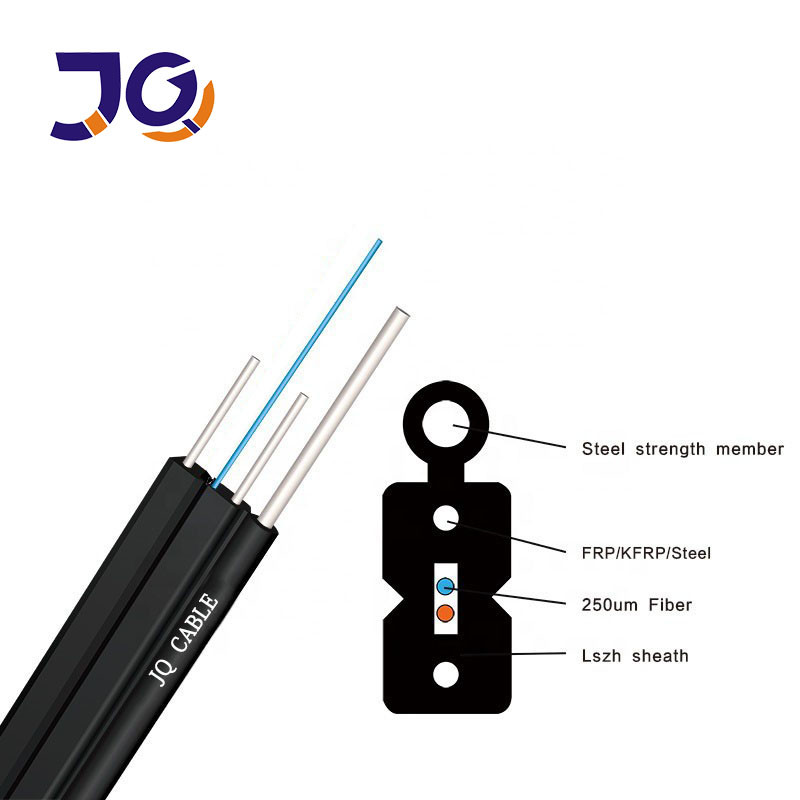

                                              outdoor drop cable





G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket 2

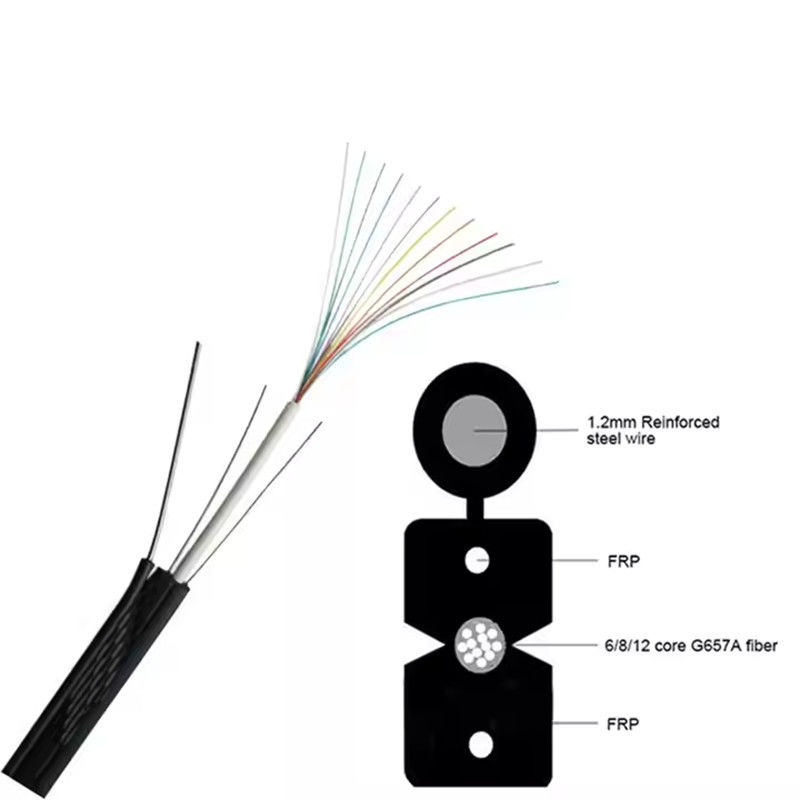

                                           loose tube outdoor drop cable





drop cable package



G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket 3



                                                    package in the box



G657A1/G657A2 FTTH Messenger Drop Cable – Outdoor & Indoor FTTX Fiber Optic Cable With LSZH Jacket 4



                                              package in the pallets







FAQ

1. Are you a trading company or a manufacturer?
We are a manufacturer with 12 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China. Welcome to visit us!

2. How is your product quality?
All fibers are 100% tested before delivery. After price confirmation, free samples are available for quality evaluation.

3. Do you accept small orders?
Yes, we welcome small orders and support new projects, as we understand business often starts small.

4. What is your delivery time?
Typically 3–7 working days, depending on order quantity. We will arrange shipment as soon as payment is received.

5. Do you provide OEM services?
Yes, OEM is available. We can print your logo on the products, and custom designs are welcome.
