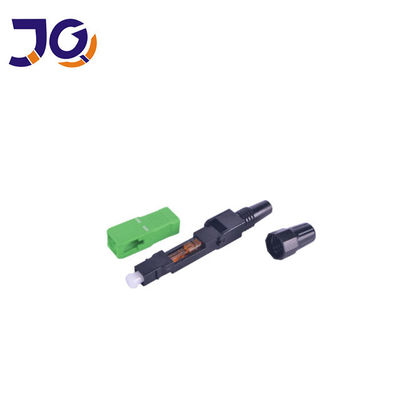

High Quality SC APC Fiber optical fast connector
Specifications (SC/APC connector)
| Item | Description |
| Fiber diameter | 3.0*2.0mm |
| End face polished | APC |
| Insertion loss |
Average value≤0.25 dB,max value≤0.4 dB Min.>45dB, Typ.>50dB ( SM fiber UPC polish)
|
| Return loss |
Min.>55dB, Typ. >55dB ( SM fiber APC polish/When use with Flat cleaver)
|
| Fiber retention force |
<30N (<0.2dB with impressed pressure)
|
Test Parameters
| Item | Description |
| Twist test | Condition: 15N load, 5 cycles in a test |
| Pull test | Condition: 30N load, 120sec |
|
Drop test
|
Condition: At 1.5m, 10 repetitions |
| Durability test | Condition: 200 repetition of connecting/disconnecting |
| Vibrate test | Condition: 3 axes 2hr/axis,1.5mm(peak-peak),10 to 55Hz(45Hz/min) |
| Thermal Aging | Condition: +85℃±2℃, 96 hours |
| Humidity test | Condition: 90 to 95%RH, Temp75℃ for 168hrs |
| Thermal Cycle |
Condition: -40 to 85℃, 21 cycles for 168 hours |
FAQ
1,Q:What is the MOQ?
2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.
4.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
