2コア 4コア FTTH光ファイバーケーブル GJXH/GJXFH フラットケーブル
担当者 : colleen
電話番号 : 8618122384446
Whatsapp : +8618122384446
詳細情報 |
|||
繊維の計算: | 1/2/4の中心 | ジャケット色: | 白い黒 |
---|---|---|---|
ジャケット材料: | LSZH/PVC | 減少(最高): | ≤0.36dB /KM (1310nm) |
強さメンバー: | 鋼鉄メッセンジャーWire/FRP | 繊維: | 要求としてYOFC、または |
重量: | 20kgs/km | 長さ: | 1kmか2km |
繊維のタイプ: | G657A1/A2/G652D | 適用: | FTTHのネットワーク |
ハイライト: | FRP FTTHの繊維光学のドロップ・ケーブル、20kgs/km FTTHの繊維光学のドロップ・ケーブル、20kgs/kmの繊維光学の引込み線,20kgs/km FTTH Fiber Optic Drop Cable,20kgs/km fiber optic drop wire |
製品の説明
Product Description

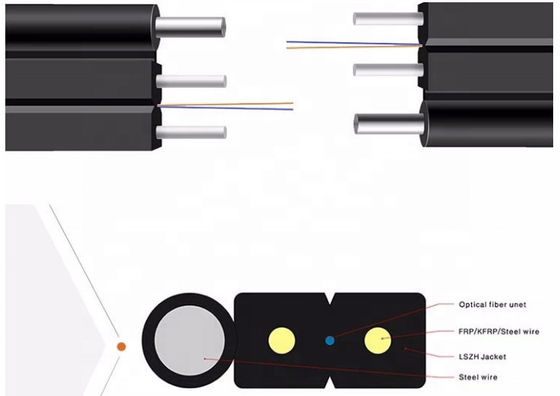

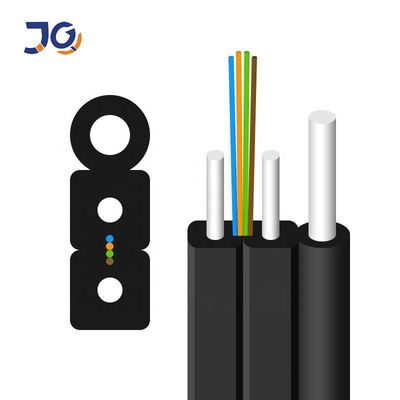

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.
Features
G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable
Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
Product detail
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
G.657A1 |
||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
1550nm |
μm |
10.1±0.5 |
||
2 |
Cladding Diameter |
um |
124.8±0.7 |
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
4 |
Core-Cladding Concentricity Error |
um |
≤0.5 |
|
5 |
Coating Diameter |
um |
245±5 |
|
|
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
入cc≤1260 |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
1550nm |
dB/km |
≤0.21 |
||
10 |
Macro-Bending Loss |
1turnx10mm radius@1550nm |
dB |
≤0.75 |
1turnx10mm radius@1625nm |
dB |
≤1.5 |
Technical parameters
Product Model |
Fiber Count (core) |
Cable Diameter(mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance |
Bending Radius Static/Dynamic |
GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply
Package
Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
